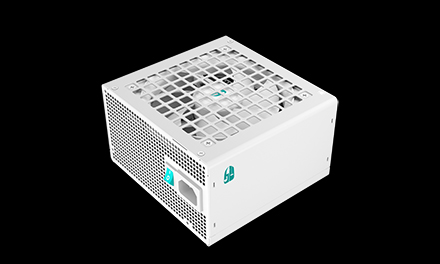

DeepCool PQ1200G WH 1200W Fully Modular ATX12V V3.1 Power Supply 80+ Gold & Cybenetics Certified with 120mm FDB Fan and Japanese Capacitors
★ 0.0 Rating (0 user feedback)

SKU: R-PQC00G-FD1W-JGAU-V1

Availability: In Stock

Brand: DeepCool

Category: Power Supplies

$243.55


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The DeepCool PQ1200G WH is a high-performance 1200W power supply designed to meet the demanding power needs of modern gaming and high-end PC builds. Certified with both 80 Plus Gold and Cybenetics Gold ratings, this PSU delivers exceptional energy efficiency of over 90% at typical loads, ensuring lower energy bills and reduced heat output.

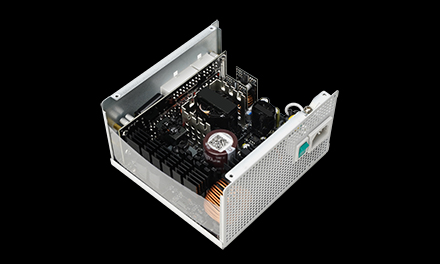

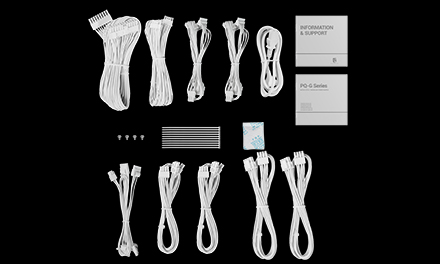

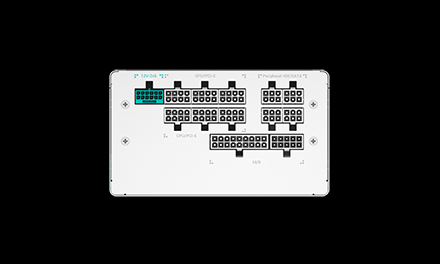

Featuring a fully modular design, it gives you ultimate cable management flexibility, improving airflow and aesthetics within your chassis. The power supply employs a sophisticated power topology combining Active PFC, Half Bridge SRC LLC, and DC-to-DC conversion, which guarantees stable and clean power delivery to all system components.

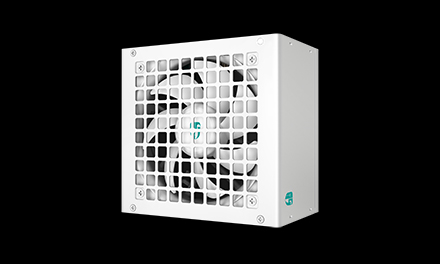

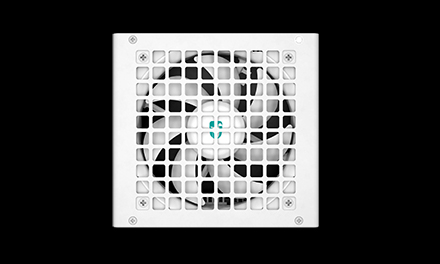

Built with full Japanese electrolytic capacitors, the PQ1200G WH ensures enhanced reliability and longevity even under demanding operational conditions. It includes a large 120mm Fluid Dynamic Bearing (FDB) fan that dynamically adjusts its speed based on thermal load, providing quiet and efficient cooling.

Safety is paramount: the unit incorporates comprehensive protections including OPP (Over Power), OVP (Over Voltage), SCP (Short Circuit), OTP (Over Temperature), OCP (Over Current), UVP (Under Voltage), SIP, and NLO, safeguarding your investment in critical hardware.

Measuring a compact 150 x 140 x 86 mm, it fits comfortably in most ATX-compatible cases and supports a powerful 12V-2x6 (16-pin) cable capable of delivering up to 600W to GPUs, perfect for high-end graphics cards and gaming rigs.

With a remarkable Mean Time Between Failures (MTBF) of 100,000 hours and backed by a 10-year limited warranty, the DeepCool PQ1200G WH is an ideal choice for gamers, enthusiasts, and professional users seeking premium power efficiency, superior build quality, and robust system protection.

Technical

Fan TypeFluid Dynamic Bearing (FDB)
Efficiency Certification80 Plus Gold,Cybenetics Gold,PPLP Gold
TopographyActive PFC + Half Bridge SRC LLC + DC-to-DC
Hold-Up Time16

Physical

Dimensions (WxDxH)150 x 140 x 86
Power Supply TypeFully Modular
Dimensions150 x 140 x 86 mm
Form FactorATX12V V3.1

Cooling

Fan Size120

Environmental

Operating Temperature0 - 40\u00b0C

Reliability

MTBF100000

Performance

Rated Power Output1200
Wattage1200

Identifiers

Model NumberPQ1200G

Electrical

Output Voltage12V
Output Current50A

Compliance

Environmental ClassErP 2013
