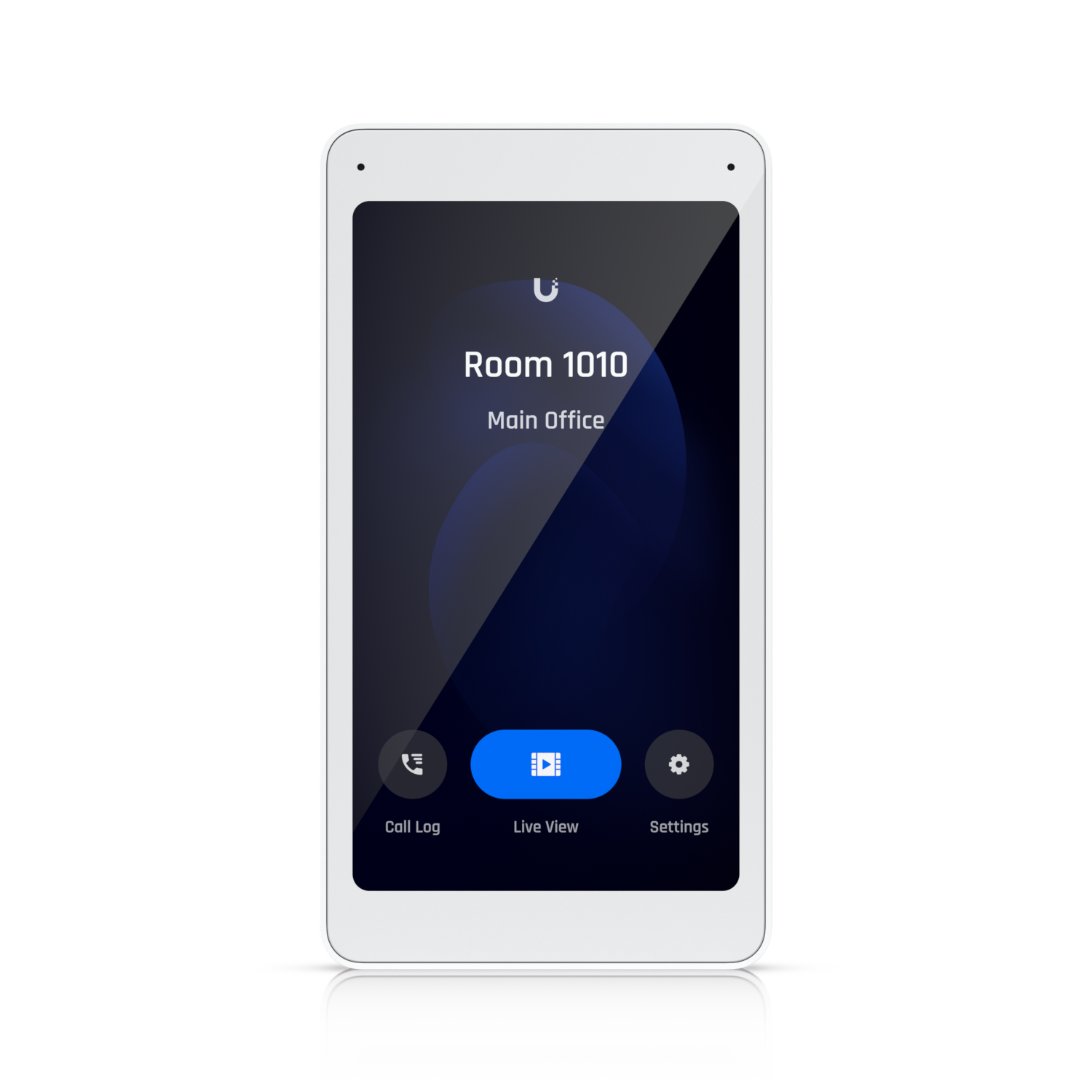

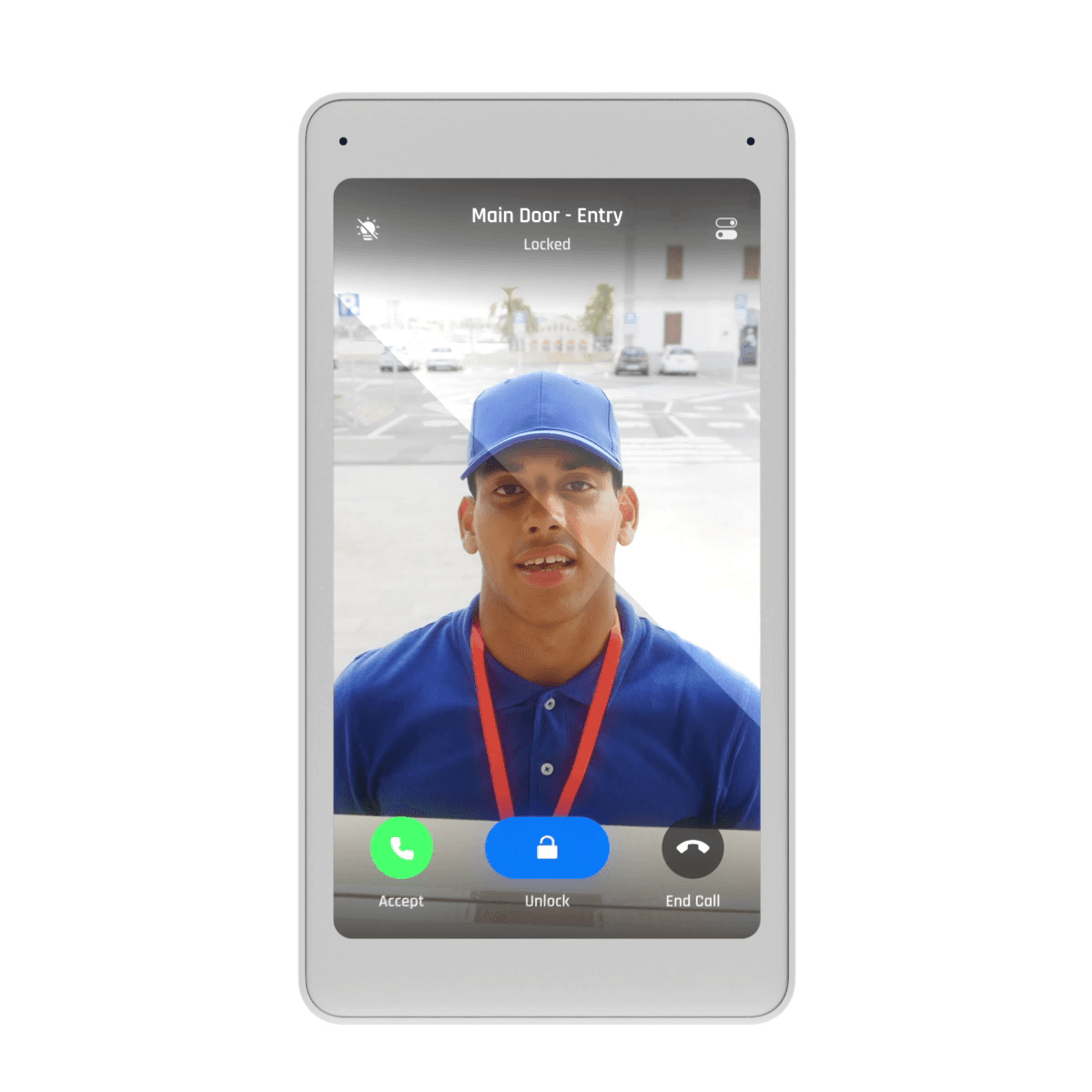

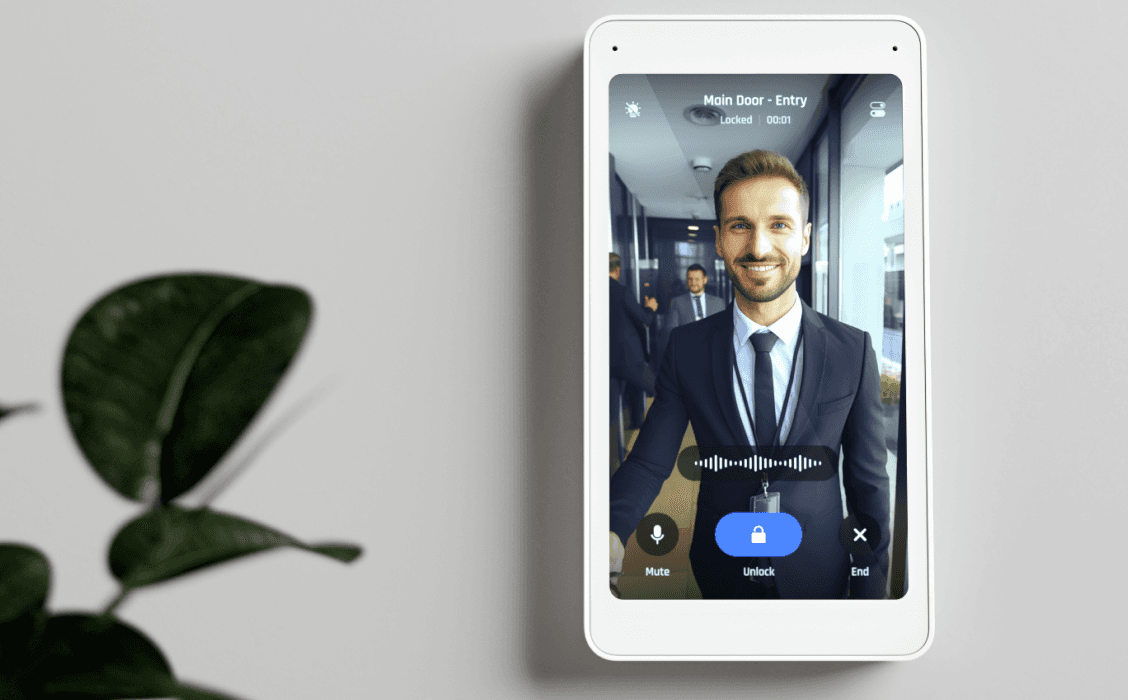

The Ubiquiti UA-Intercom-Viewer is a sleek, indoor-only 5" capacitive multi-touch PoE display designed to pair seamlessly with UniFi Access Intercom systems. This device enables efficient visitor screening with *instant live video* viewing at 1280×720 HD resolution and crystal-clear two-way audio communication via its built-in microphone and speaker. The lightweight unit (168 g) features a durable glass and polycarbonate enclosure with an aluminum-alloy mounting bracket, optimized for wall mounting (gang-box mount optional).

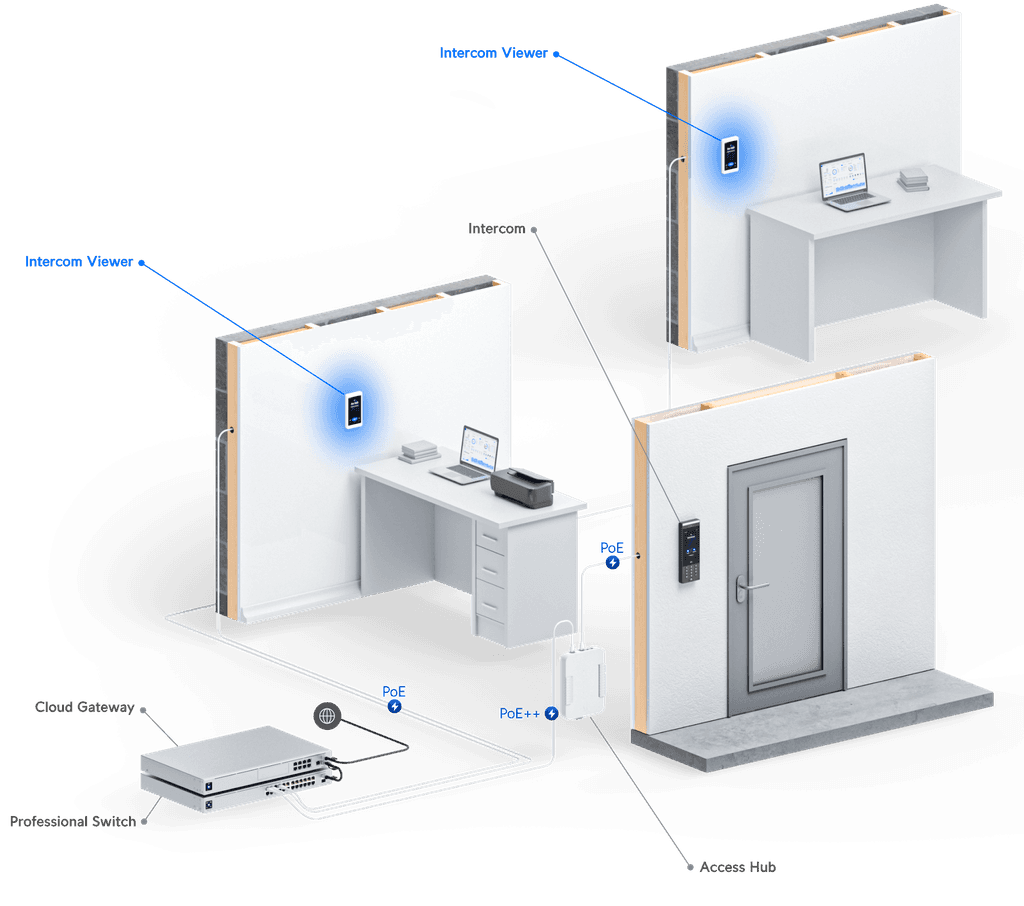

Power and network connectivity are delivered conveniently over a single 10/100 Mbps Ethernet port with Power over Ethernet (PoE), supporting 44–57 V DC and a max power draw of 5 W. The UA-Intercom-Viewer integrates with the UniFi Access management software, allowing easy remote unlocking and visitor interaction from multiple locations within a building.

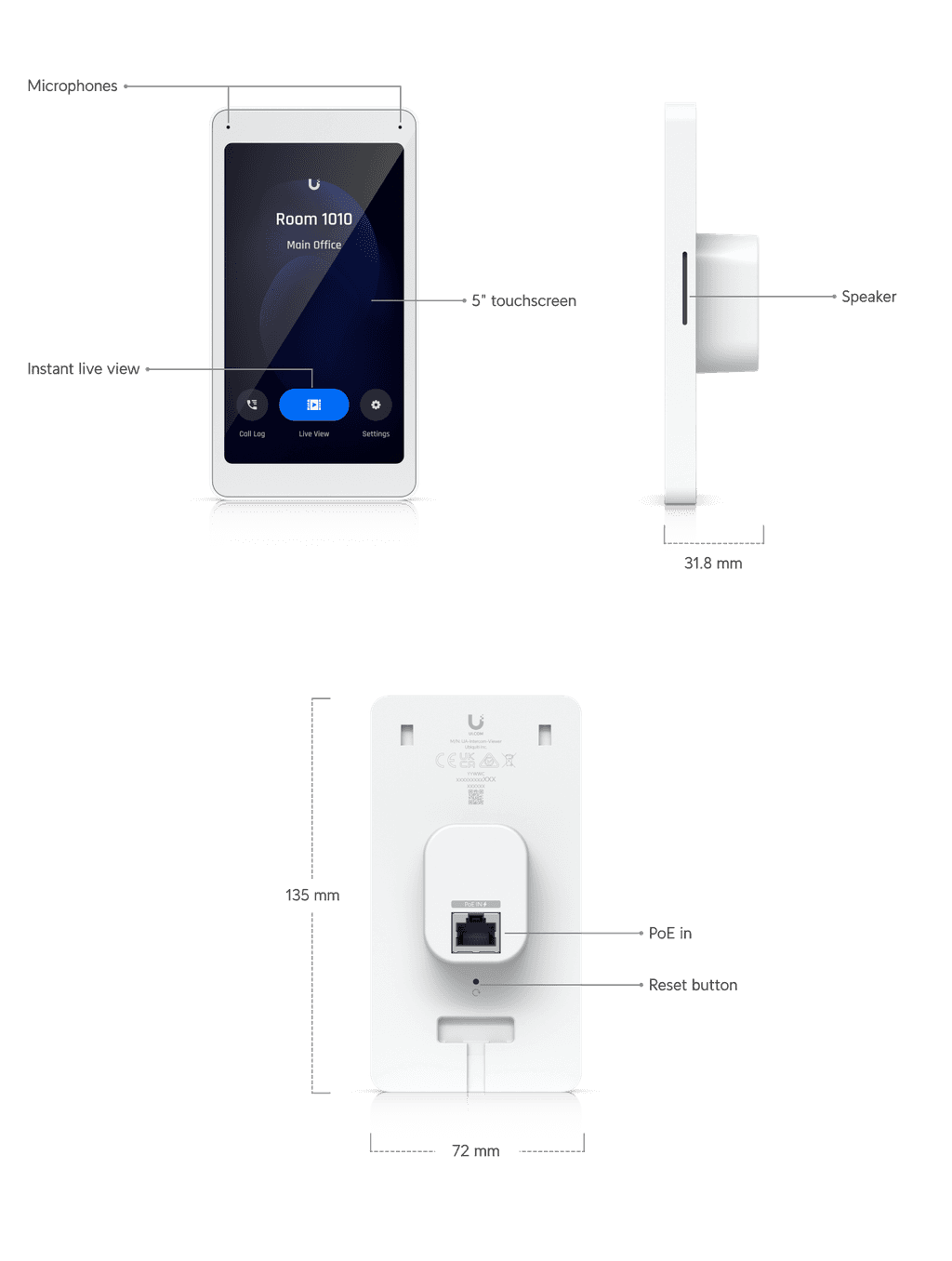

Certified for safety and compliance with CE, FCC, IC, UL 294, and CAN/ULC-60839-11-1, the device is NDAA compliant and operates reliably in ambient temperatures of 0 to 40° C and humidity from 5% to 95% noncondensing. Its compact dimensions (135 × 185 × 32 mm) make it a streamlined solution for modern access control environments.

Key Features:

• 5" (127 mm) capacitive multi-touch display, portrait orientation


• 1280 × 720 resolution with 300 nits luminance

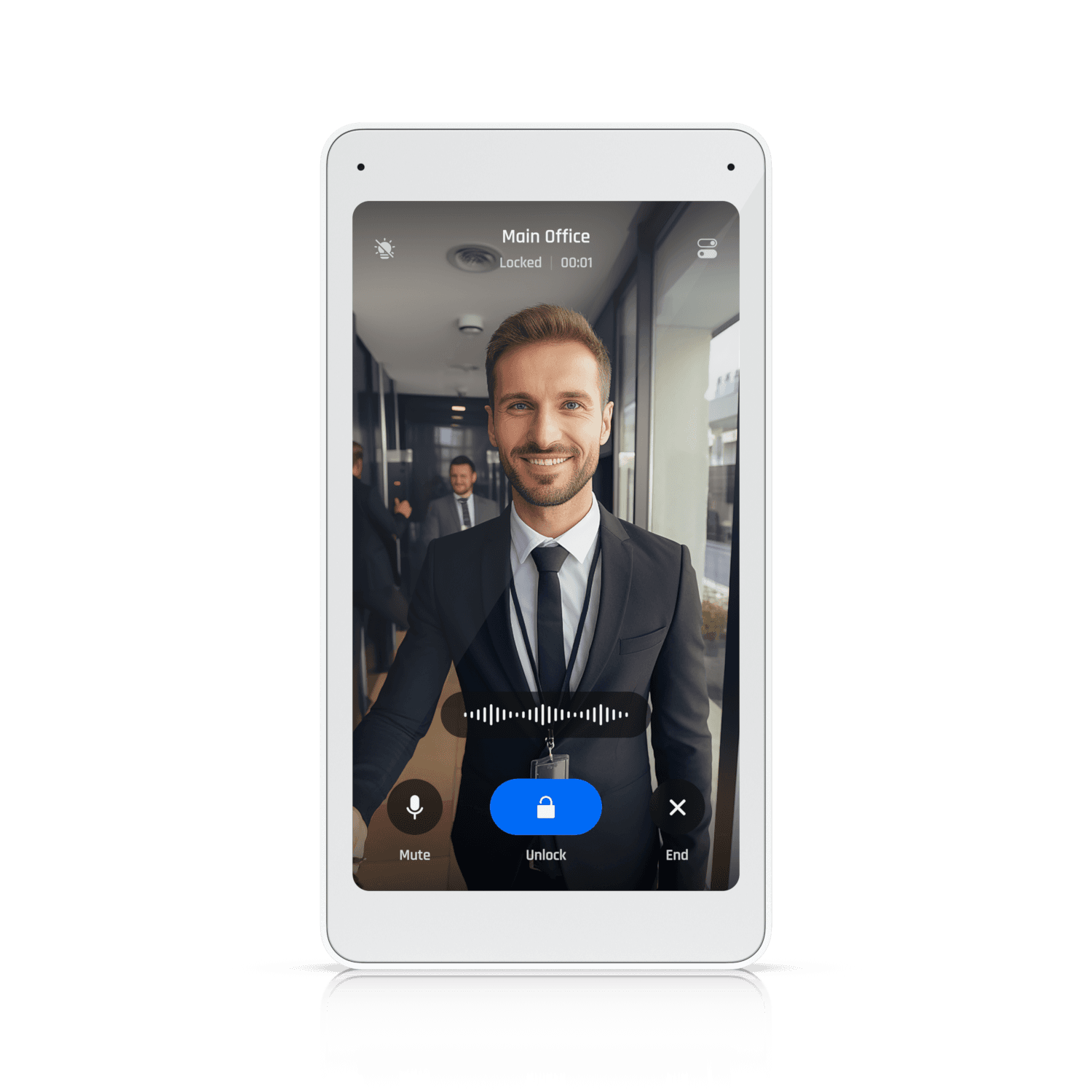

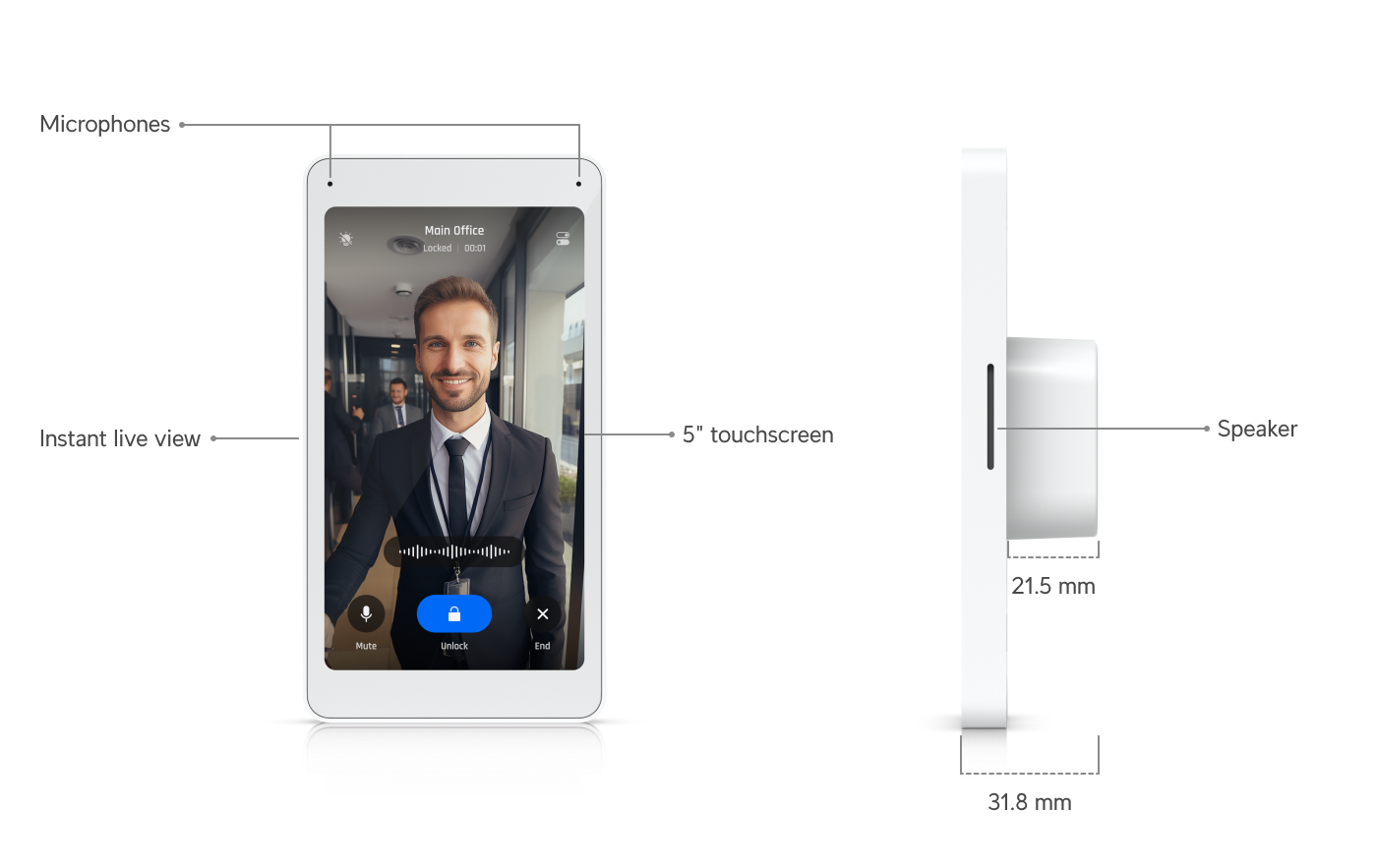

• Two-way audio (microphone & speaker) for live visitor communication

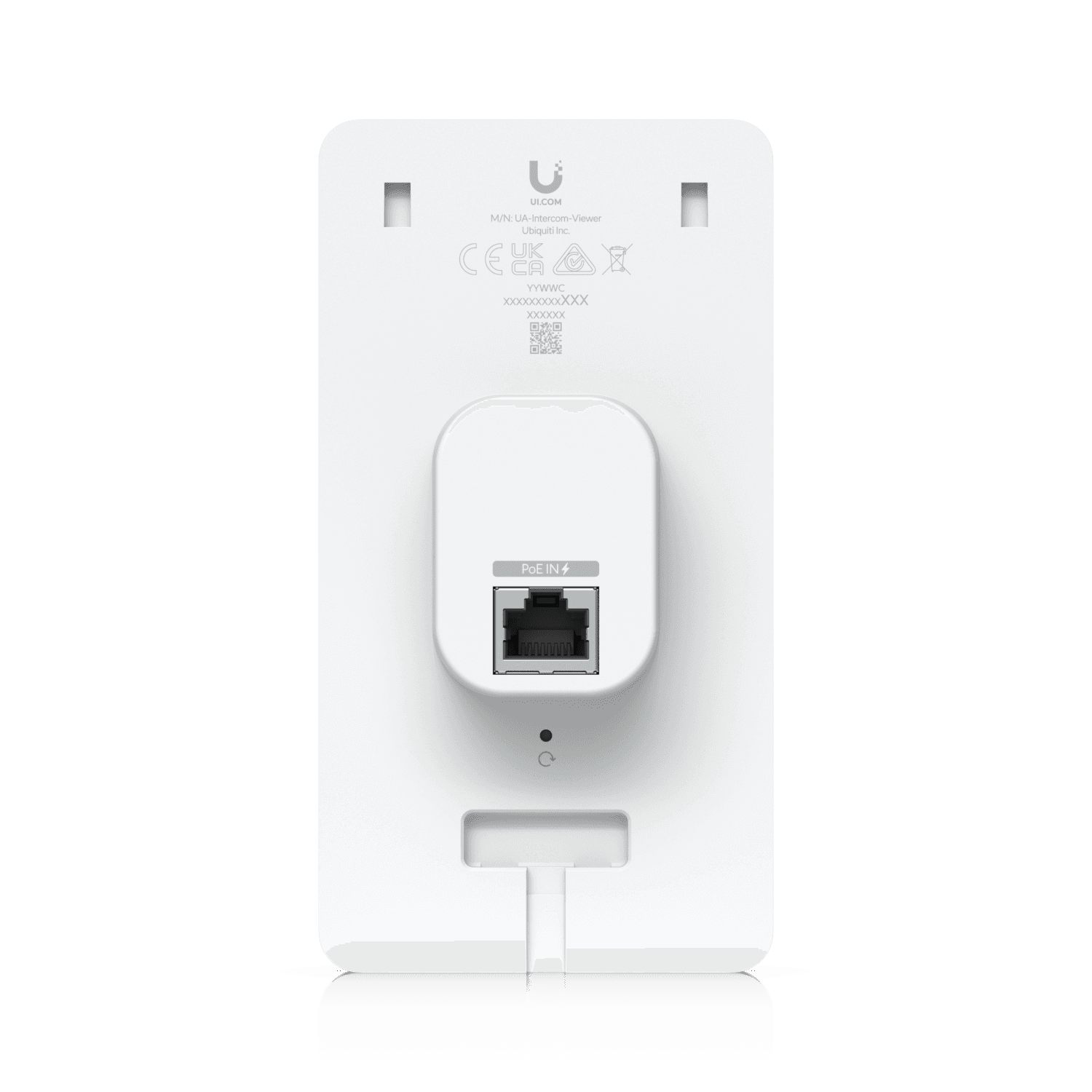

• Powered and connected via a single PoE-enabled RJ45 port (10/100 Mbps)


• Lightweight design (168 g) with premium materials

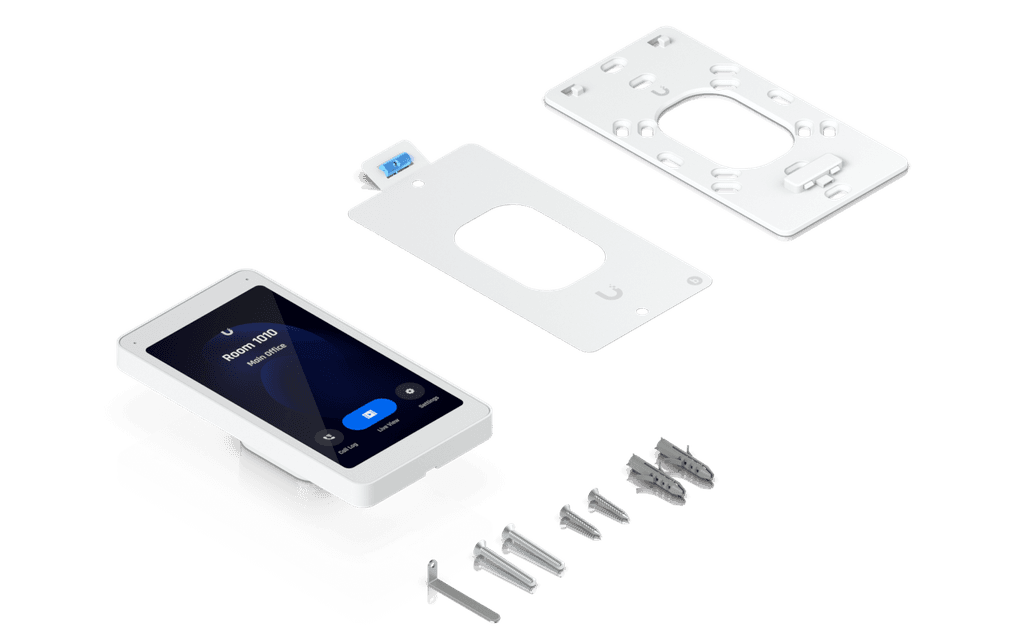

• Wall mount installation with optional gang box


• UL 294 and CAN/ULC certified for high-level security applications


• NDAA compliant for government and corporate use


For complete technical details and installation instructions, refer to the official Ubiquiti documentation.
